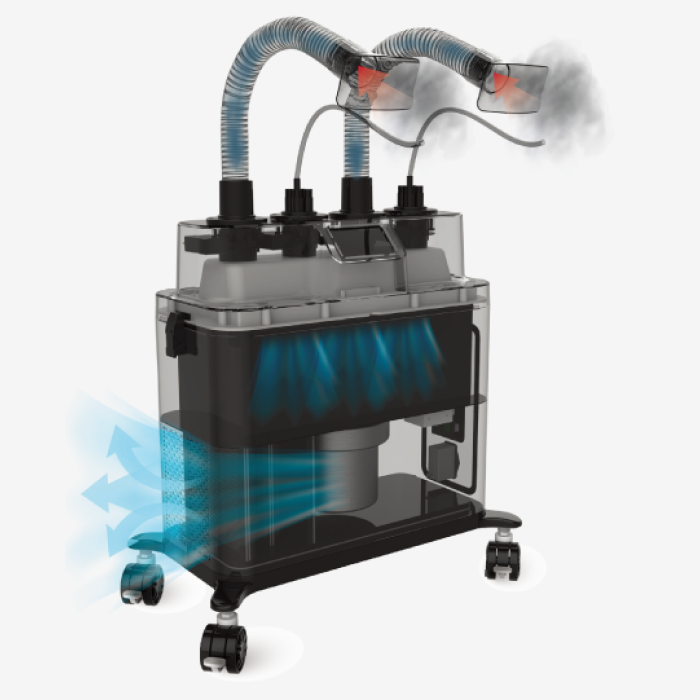

Fume Extractor

Purifies harmful chemical gases generated on-site to create a safe working environment.

Simultaneous work in four areas through four suction ports.

Powerful suction and low noise achieved through the adoption of a BLDC motor.

Automatic operation triggered by detecting the use of a soldering iron.

Excellent control performance with the adoption of a highly reliable SERVO motor valve.

High-resolution touch LCD control.

LCD remote controller (optional).

Maximized purification capability with a medium filter and 7-layer composite filter system.

Filter replacement alert based on usage time and filter contamination.

Adjustable suction strength in 3 (4) stages / fine adjustment available from 1 to 10 levels.

Flexible suction hose allows effective removal by approaching the area where harmful substances are generated.

Includes a basic power circuit, essential for production and testing of electrical/electronic circuits (when applying CPE FXS403).

Simple design with minimal external exposure when embedded inside the table (when selecting the dedicated table).

Specification

Fume Suction Ports 4-port
Blower type BLDC Motor
Suction Port Valve 4-Port Servo motor control valve
Maximum Air Volume 270㎥ /h
Maximum Air Pressure 3-Step mode 5.3kPa / 4-Step mode 6.5kPa
Noise Level <54dB
Display 4.3" 480x272 TFT Color touch graphic LCD
Operating Voltage AC 110~240V 50/60Hz
Power Consumption Max.500W
Filter Medium Filter Filter Grade (EN779): Medium Dust M5
Average Efficiency (0.4㎛ particles): ≥40%
Composite Filter H13 HEPA Filter: Capture Efficiency 99.97% (0.3㎛)
Activated Carbon Filter: 3Φ / 2,000g
Filter Usage Time Max. 2200 hours (*varies depending on work contamination)
Main Unit Size (W x D x H) 625x346x680mm
Weight Approximately 30kg
